Dewalt Tool Shelf

I designed this in Google Sketchup and then made this tool shelf in Grade 12 wood shop for my dad’s Dewalt Power Tools.

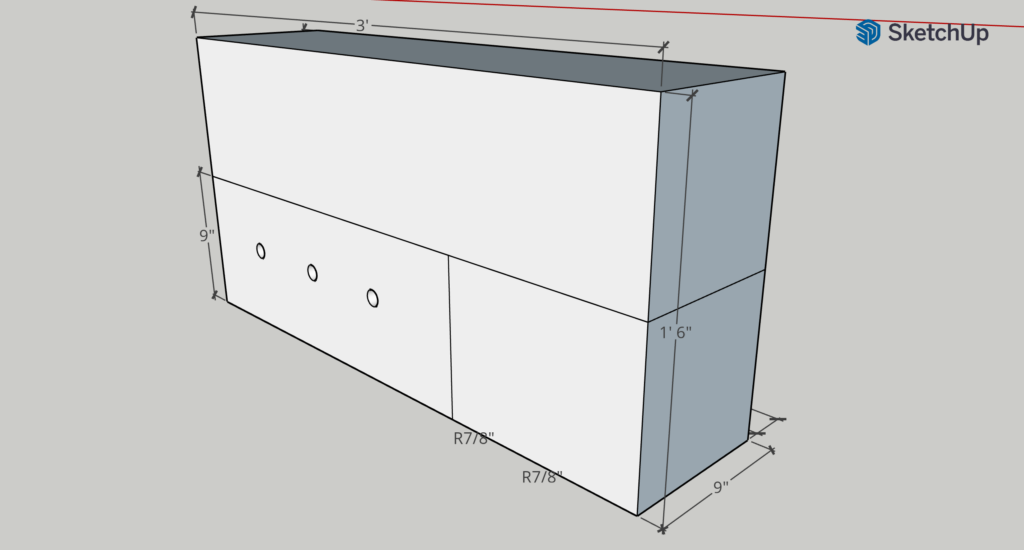

Front face with some measurements.

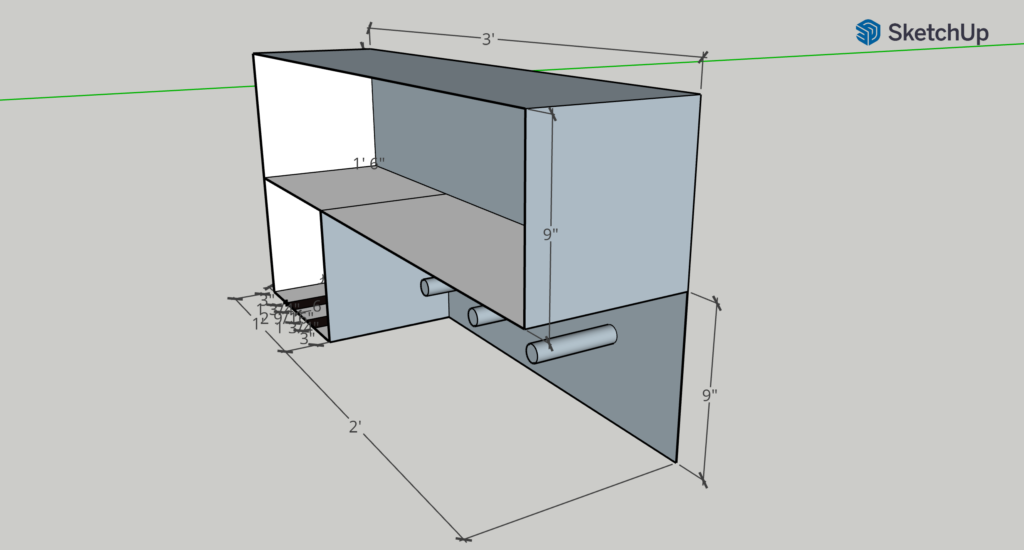

Back side of shelf.

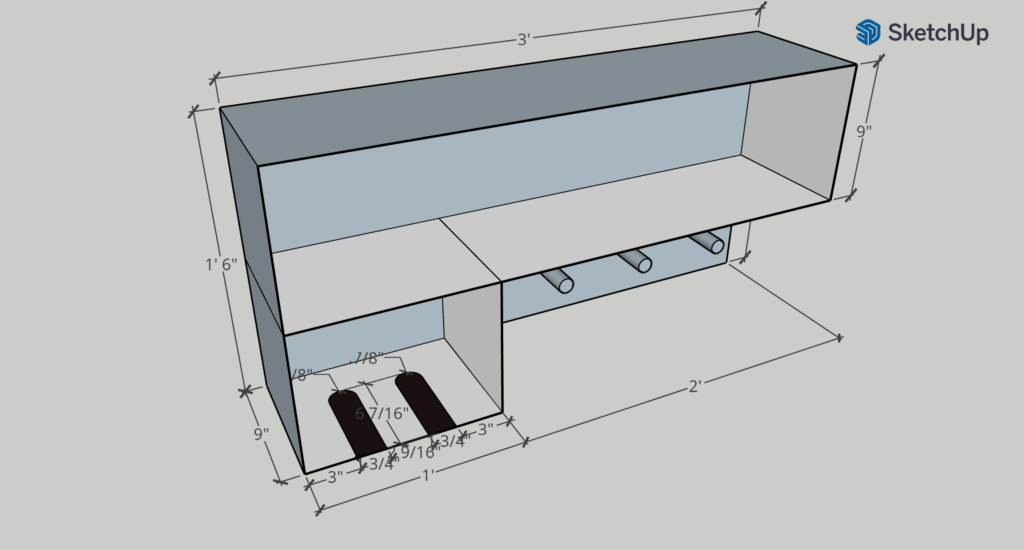

Side measurements of the large tool area. The 1″ dowel pegs are 5″ long to hang larger tools by the handle.

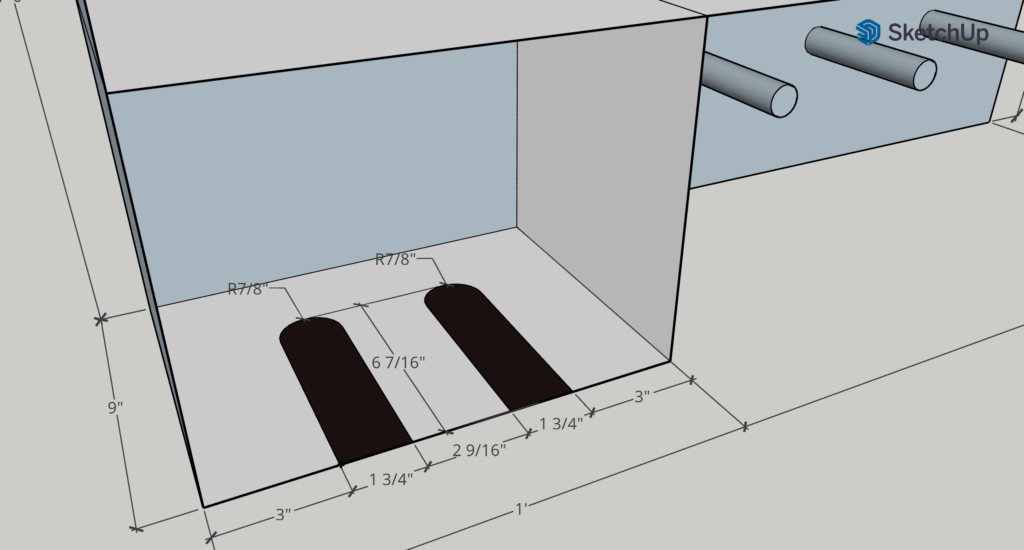

A close up with measurements for the two grooves cut into the bottom of the shelf. This can hold drills upside down by the handle.

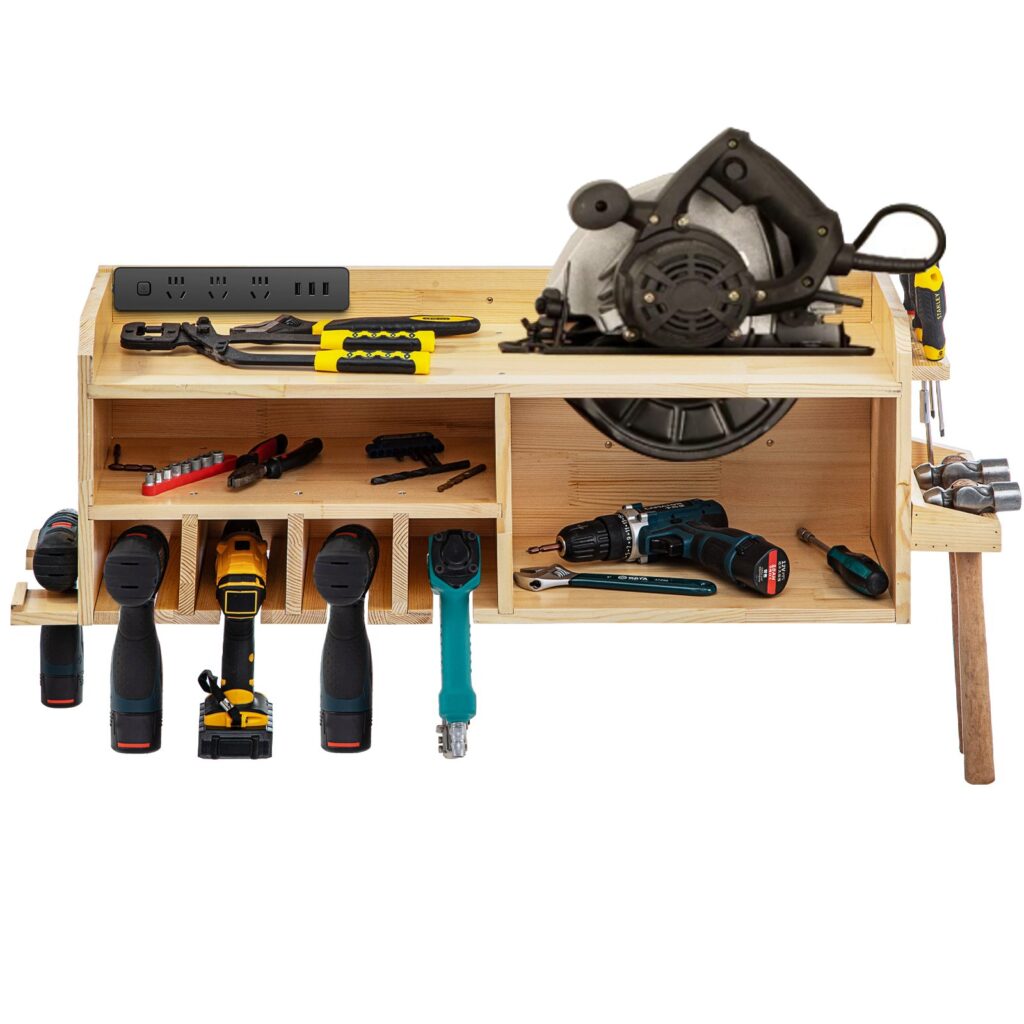

I based my idea off this $150 tool organizer.
